Mapping textures to editable shapes

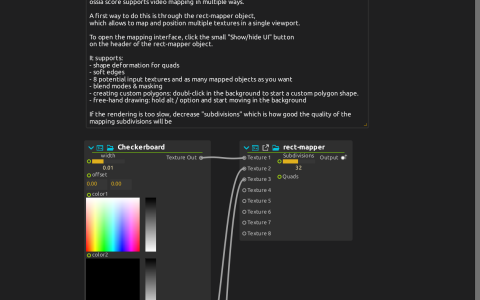

Checkerboard texture routed into an editable projection-mapping composition

Fit moving patterns to a set of shapes instead of filling a rectangular screen. Editable corners, polygons and freehand outlines let you sketch a projection composition around objects or architectural details, with soft edges and blending where shapes overlap.

Mapping interface

Three generated patterns feed a mapping interface that places them within one viewport. One source rotates and another responds to the pointer, so you can see how motion behaves inside a deformed shape. The mapper produces a composed texture; splitting that image across physical displays is a separate output step.

Setup

Use a build with JavaScript/QML and Qt Quick 3D, and install the default preset package containing rect-mapper. Keep the preset’s helper scripts and material shaders together: the saved interface still relies on its relative imports. No movie is required.

Try it

  • Start playback and click rect-mapper’s Show/hide UI button in its process header. Assign a texture to a quad and move its corners; use the checkerboard to see where the image stretches.
  • Soften a shape’s edges, then change blend or mask settings where shapes overlap.
  • Double-click the background to start a polygon, or hold Alt/Option while drawing in the background for a freehand shape; both can follow outlines a four-corner quad cannot.

Reduce Subdivisions from 32 if deformation is too costly; strongly deformed shapes show visible facets at low values. For projection across several displays, send the composed texture to the Window device’s Multi-window mode.
