Wiimote device

Turn Nintendo Wii Remotes into expressive wireless controllers for your score projects. Get 3D motion sensing, IR pointing, button input, and extension support through Bluetooth connectivity.

Perfect for gestural control, spatial audio manipulation, interactive installations, or any project where you want natural, wireless interaction without complex sensor setups.

Setting up a Wiimote device

1. Put your Wiimote in pairing mode - Press and hold the 1 and 2 buttons simultaneously until the LEDs flash

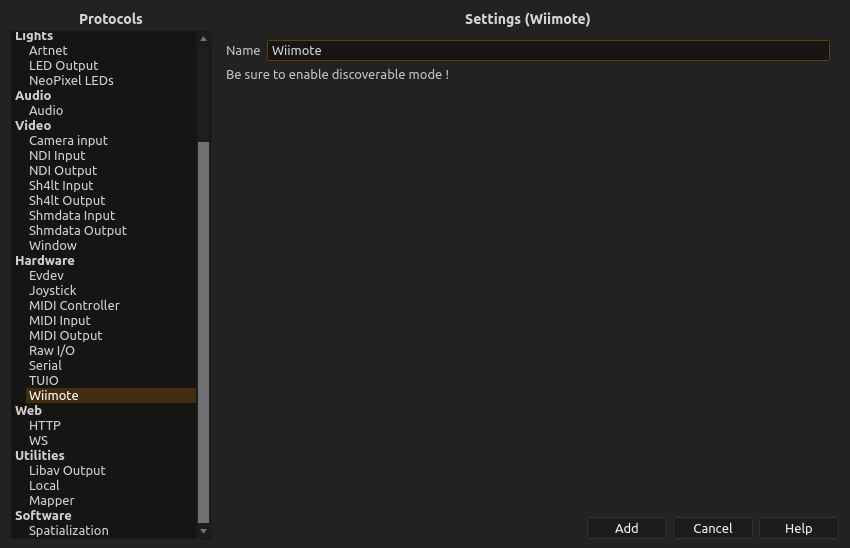

2. Add device in the Device explorer and choose “Wiimote”
3. Wait for connection - The device will automatically discover and pair with available Wiimotes
4. Test the connection - Press buttons and move the remote to see parameter updates

For IR pointer functionality, set up an IR sensor bar or use candles as IR reference points.

Available inputs

Motion sensing

Accelerometer - 3-axis tilt and motion detection
X, Y, Z axes - Raw acceleration values for gesture recognition
Tilt angles - Processed roll and pitch for precise orientation control
Shake detection - Built-in gesture recognition for sudden movements

Button interface

D-pad - Four-way directional control
A and B buttons - Primary action buttons
1 and 2 buttons - Secondary controls
Plus and Minus - Menu/settings buttons
Home button - Special function button

IR camera

IR pointing - 10-point infrared tracking with sensor bar
X/Y coordinates - Screen-relative pointing position
Distance sensing - Rough distance estimation from IR sources
Multi-point tracking - Track up to 4 IR sources simultaneously

Extension support

Nunchuk - Additional analog stick and motion sensing
Classic Controller - Traditional gamepad layout
Motion Plus - Enhanced gyroscope for precise rotation
Other extensions - Guitar Hero controllers, balance boards, etc.

Creative applications

Gestural composition: Map Wiimote movements to musical parameters - tilt for pitch bend, shake for rhythm triggers, pointing for spatial audio control.

3D spatial control: Use accelerometer data for positioning sounds in 3D space with DBAP or GBAP spatialization.

Interactive performances: Wireless freedom lets performers move naturally while controlling audio, video, or lighting parameters.

Installation interaction: Provide intuitive, game-like interfaces for gallery visitors - everyone knows how to use a Wiimote.

Multi-user systems: Connect multiple Wiimotes for collaborative control or performance systems.

Integration with score processes

Mapping Tool: Shape accelerometer data into musical curves - add dead zones for steady holding, create response curves for natural gesture feel.

Spatial audio: Connect motion data directly to DBAP positioning for sound that follows your movements through 3D space.

Audio Effects: Map tilt and rotation to effect parameters - shake the remote to add distortion, tilt for filter sweeps.

Video processing: Control visual effects with gesture - point to control projection mapping, shake for visual intensity.

Advanced techniques

Gesture recognition: Combine multiple axis data to recognize complex gestures - figure-8 movements, specific pointing patterns, or choreographed sequences.

Sensor fusion: Use accelerometer and IR data together for more robust tracking and control.

Distance-based interaction: Use IR distance sensing for proximity-based effects - sounds that change as you approach or move away from reference points.

Multi-controller orchestration: Create ensemble pieces where multiple performers with Wiimotes contribute to a unified musical or visual experience.

Technical considerations

Bluetooth connectivity: Wiimotes use Bluetooth HID protocol - ensure your system supports Bluetooth connections and proper pairing.

Battery life: Wiimotes use AA batteries - expect 30-60 hours of use depending on rumble and speaker usage. Consider rechargeable batteries for installation use.

IR setup: For pointer functionality, position IR sources (sensor bar, candles, IR LEDs) appropriately for your space and interaction design.

Range limitations: Bluetooth range is typically 10 meters - plan your performance or installation space accordingly.

Troubleshooting

Connection issues: Try re-pairing by pressing 1+2 buttons, ensure Bluetooth is enabled and working, check that the Wiimote isn’t paired to another device.

Poor motion tracking: Check battery levels, ensure the remote isn’t in a case or cover that blocks sensors, recalibrate if necessary.

IR problems: Ensure IR sources are visible to the Wiimote camera, check for interference from other IR sources, verify sensor bar positioning.

Lag or dropouts: Move closer to reduce Bluetooth distance, minimize interference from other wireless devices, check for low battery conditions.

The Wiimote device works beautifully with OSC for networking gesture data, MIDI for musical applications, or Joystick devices for hybrid control setups that combine different input methods.

Related devices

Combine with Joystick devices for comprehensive controller setups, use OSC to network Wiimote data to other systems, or integrate with Kinect for full-body plus handheld gesture control.

---
