Trigger

Trigger

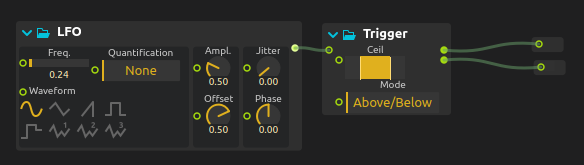

This object sends trigger messages when the incoming values enter or leave the input range.

Example: if the input messages are:

5
3.6
3.4
3.8
1457
-50000

then given a min of 2 and max of 4, there will be:

  • An “enter” trigger when the 3.6 message is received (we entered the range)
  • A “leave” trigger when the 1457 message is received (we left the range).

The second operation mode, “Outside/Inside” instead sends messages whenever the values enter or exit the range.

Try it!

Try it by downloading this simple example!
