ossia

Bitfocus Companion Device

Companion Device

Bitfocus Companion provides modules for controlling streaming, broadcast and AV equipment. score can host Companion modules directly, exposing their actions, feedback and variables in the Device explorer. A separate Companion application or Stream Deck is not required for this module-hosting workflow.

Compatibility depends on the individual module, its runtime requirements and the target equipment; a module in the package is not a guarantee that every Companion feature is implemented by score.

Requirements

Software

  • ossia score with Companion package installed from the package manager in the settings
  • Compatible software or hardware controllers you want to use.

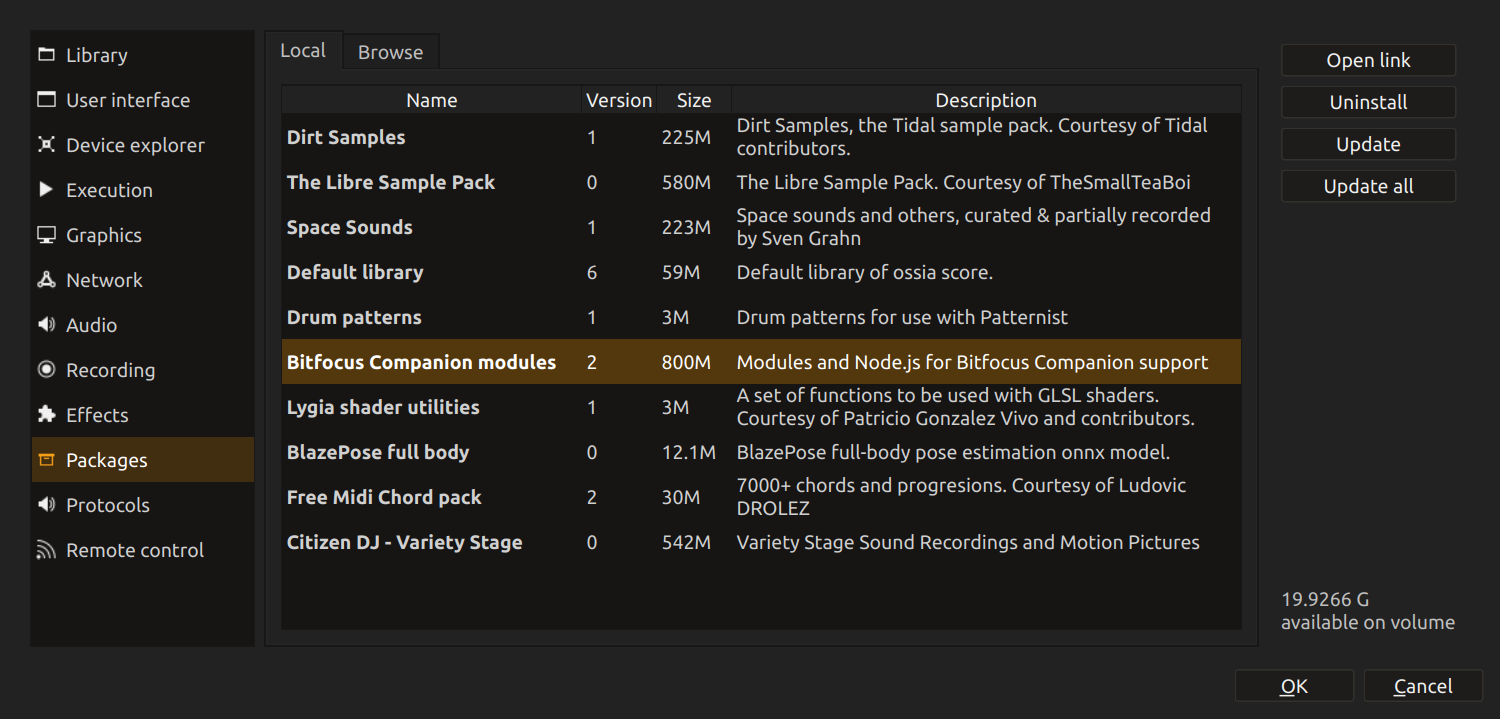

Package Installation

  1. Open the Package Manager from the settings
  2. Search for “Bitfocus” in the remote packages list
  3. Install the Bitfocus Companion Modules package.
  4. Restart ossia score

Bitfocus Example

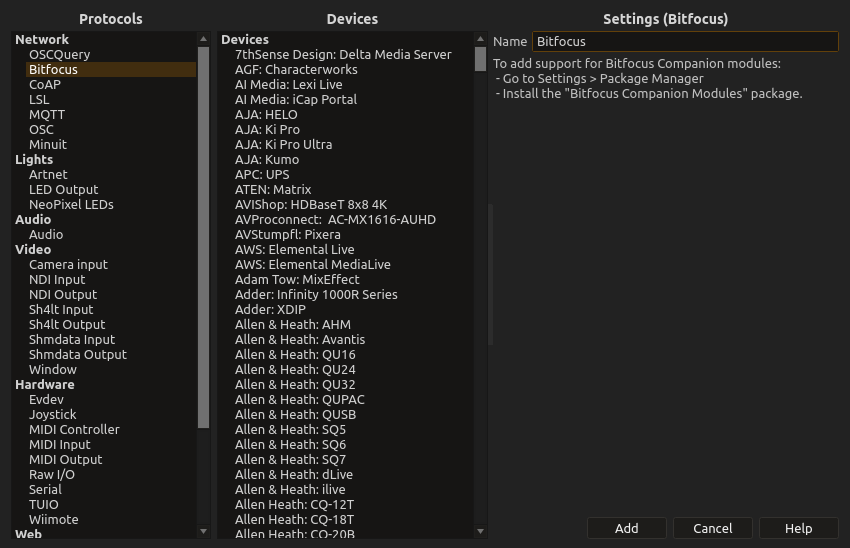

Device Setup

1. Add Companion Device in score

  1. Right-click in Device Explorer
  2. Select Add Device
  3. Choose Bitfocus from protocols
  4. Select the actual device or protocol in the list. If the list is empty, check that the package is installed.

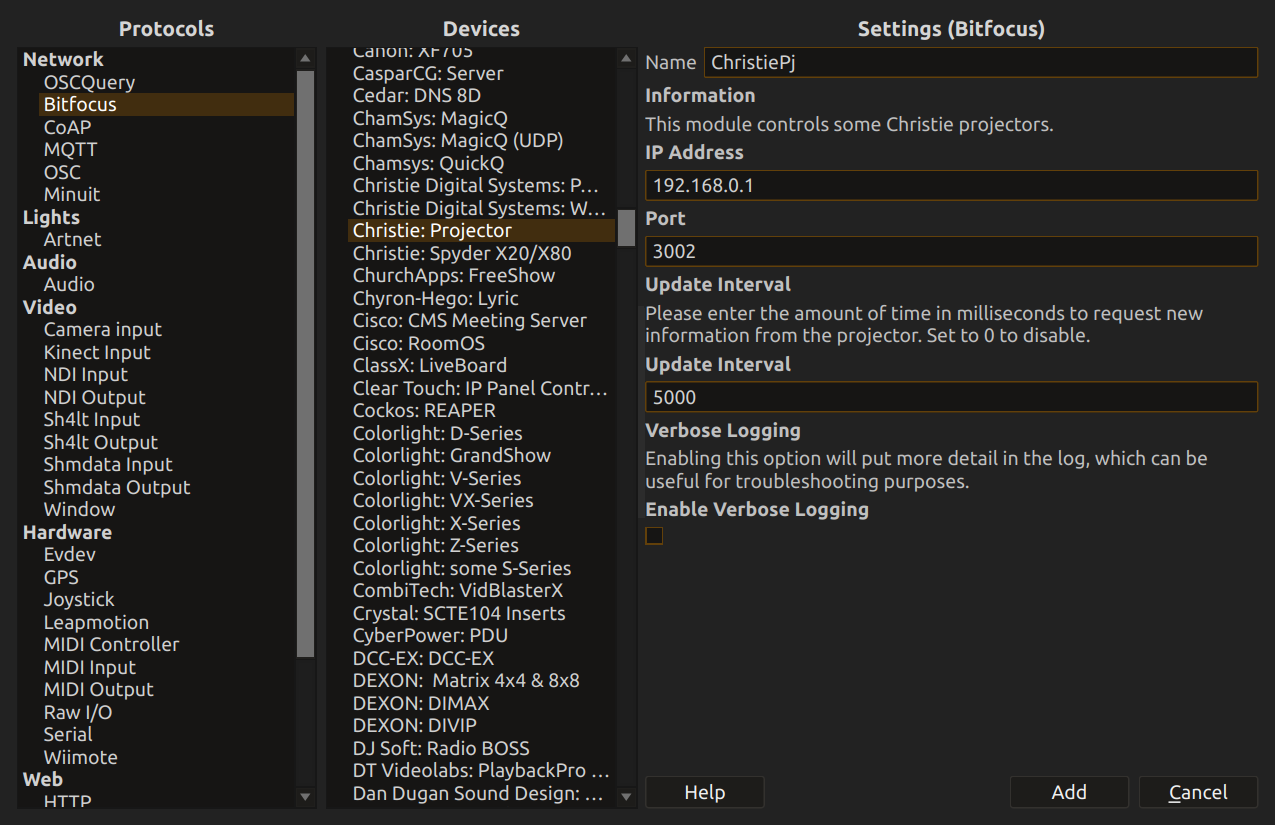

  5. Configure the selected module’s connection fields, such as host, credentials or product. These fields are supplied by the module, not a universal Companion server address.

Bitfocus Example

Available Controls

The tree is generated from the module’s definitions. Categories are singular in addresses and appear only when the module supplies them:

Address shape Use
Device:/action/actionId Send a pulse to execute an action.
Device:/action/actionId/optionId Set an option consumed by that action, using the option’s type and available choices.
Device:/feedback/feedbackId Read the latest result reported by the module’s feedback subscription.
Device:/feedback/feedbackId/optionId Configure the feedback subscription. Changing an option updates the subscription.
Device:/variable/variableId Read a variable published by the module.

Use the actual IDs shown in the tree; action descriptions may be more readable than their address names. For a multi-option action, set its options first, then send the pulse to its parent action address. For an action with exactly one exposed option, writing that option also executes the action; avoid an extra pulse unless you intend to execute it twice.

Feedback is data, not a rendered Companion button. Boolean feedback becomes a boolean parameter; other feedback may carry values or style data. Variables and feedback are supplied by the module and should not be treated as generic writable remote settings. A module may publish no feedback until it has connected, or may change its definitions after configuration.

Host and project requirements

The package contains the modules and may provide their Node.js runtimes. score selects a packaged runtime matching the module’s requested major version when available, otherwise it looks for node (node.exe on Windows) on the executable search path. Missing runtime or module dependencies can prevent connection.

The module configuration is saved with the device. Keep the corresponding module package installed on machines that open the project. Treat projects and exported device files containing connection credentials as sensitive; do not assume that export removes secrets.

This is not an import of Companion button pages, layouts or an entire Companion project. Build score states and processes around the exposed actions and values. The module owns the address tree, so manually adding arbitrary children does not add new module functionality.
