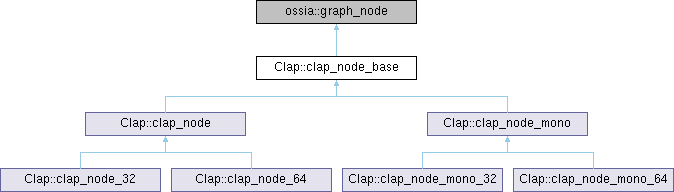

Inheritance diagram for Clap::clap_node_base:

Public Member Functions
	clap_node_base (const Clap::Model &proc)

std::string	label () const noexcept override

bool	activate_plugin (const clap_plugin_t *plugin, double sample_rate, uint32_t max_buffer_size)

bool	start_plugin (const clap_plugin_t *plugin)

void	stop_plugin (const clap_plugin_t *plugin)

void	init_parameter_values (const clap_plugin_t *plugin)

bool	deactivate_plugin (const clap_plugin_t *plugin)

auto	make_transport (const ossia::token_request &tk, ossia::exec_state_facade st)

void	process_controls (uint32_t samples)

void	process_midi ()

void	stash_midi ()

void	prepare_input_events (int64_t offset, int samples)

void	inject_all_notes_off ()

void	all_notes_off () noexcept override

void	dispatch_param_outputs ()

Public Attributes
std::shared_ptr< Clap::PluginHandle >	handle

ossia::small_vector< ossia::audio_inlet *, 2 >	audio_ins

ossia::small_vector< ossia::audio_outlet *, 2 >	audio_outs

ossia::small_vector< ossia::midi_inlet *, 2 >	midi_ins

ossia::small_vector< ossia::midi_outlet *, 2 >	midi_outs

std::vector< ossia::value_inlet * >	parameter_ins

std::vector< ossia::value_outlet * >	parameter_outs

clap_event_transport_t	m_current_transport {}

int64_t	m_tick_start {}

int64_t	m_tick_frames {}

ossia::small_vector< std::pair< uint16_t, libremidi::ump >, 8 >	m_deferred_midi

event_storage	m_input_events

event_storage	m_output_events

const std::vector< clap_param_info_t > &	m_param_ins

const std::vector< clap_param_info_t > &	m_param_outs

const std::vector< clap_note_port_info_t > &	m_midi_ins

const std::vector< clap_note_port_info_t > &	m_midi_outs

const ossia::flat_map< clap_id, std::uint32_t > &	m_param_out_index

double	m_sample_rate {44100.0}

uint32_t	m_buffer_size {512}

clap_process_status	m_last_status {CLAP_PROCESS_CONTINUE}

std::atomic< bool >	m_pending_all_notes_off {false}

Member Function Documentation

◆ stash_midi()

void Clap::clap_node_base::stash_midi ( )

inline

Keep this tick's events for the next block rather than dropping them: the span covers no whole sample, so every date in the tick maps to the sample the span starts on, which is offset 0 of the next block that covers one.

Member Data Documentation

◆ m_deferred_midi

ossia::small_vector<std::pair<uint16_t, libremidi::ump>, 8> Clap::clap_node_base::m_deferred_midi

Events from ticks that covered no whole sample, with the port they came in on, waiting for the next block that does cover one.

The documentation for this class was generated from the following file:

score-plugin-clap/Clap/Executor.cpp
